2D Measuring Tool, High Precision Car Body Frame Machine, Professional Measure Equipment Repair Tool for Car Repair Tram Gauge Construction

ApplicationIt can measure many parts such as the vehicle chassis, doors, windows, trunk, engine compartment, wheelbase, and so on. How to Use1.When measuring small dimensions up to 35.43in, a drawing-measuring ruler is not required. Use the slide rule according to the position of the distance measuring point.2.The level (level in the level display) displays the measured value. Read the measurement reading on the slider.3.When measuring dimensions of approx. 70.87in, use the stretched inner bar and measure according to the level displayed on the level meter. The measurement reading is read on the slider holder. Smoothly pull the scale (at the level shown on the level meter) during the measurement.4.The vertical scale is located directly at the point of measurement, is adjustable up and down, and is screwed in the vertical position to maintain the level (at the level shown on the level meter).SpecificationsMaterial: Aviation AluminumProcess: ElectrophoresisStyle: ModernColor: Blue, BlackAssembly Required: YesMeasurement Error: ±1mm/0.04inMeasurement Range:X-axis: 200~2250mm/7.87~88.58inY-axis: 20~150mm (or 340 mm)/0.79~5.91in(or 13.39in)Z-axis: 20~150mm (or 340 mm)/0.79~5.91in(or 13.39in)Scale Length: 95cm/37.4in; 38cm/14.96in; 17cm/6.69inPackage Size: 21*102*10cm/8.27*40.16*3.94inGross Weight: 4.2kg/9.26lbsNet Weight: 3.5kg/7.72lbsPackage Included1Set * High-precision 2D Measuring Ruler System1* CD1* Chinese & English ManualAll Accessories for Assembly

• Professional Tool: This high-precision 2d measuring ruler is designed to improve the accuracy and convenience of testing and measurement in the repair of accident vehicles, with few limitations of the site or equipment, and will not damage the car body.
• High Precision: This 2d measuring system has a measurement error of ±1mm, together with its high-precision structure design, which ensures the accuracy of your measurements.
• Complete Set: The car repairing measuring system kit includes 3 measuring scales, different types of probes, and other accessories, allowing you to choose the most appropriate tool for the measurement situation, making measurement work easier and less laborious.

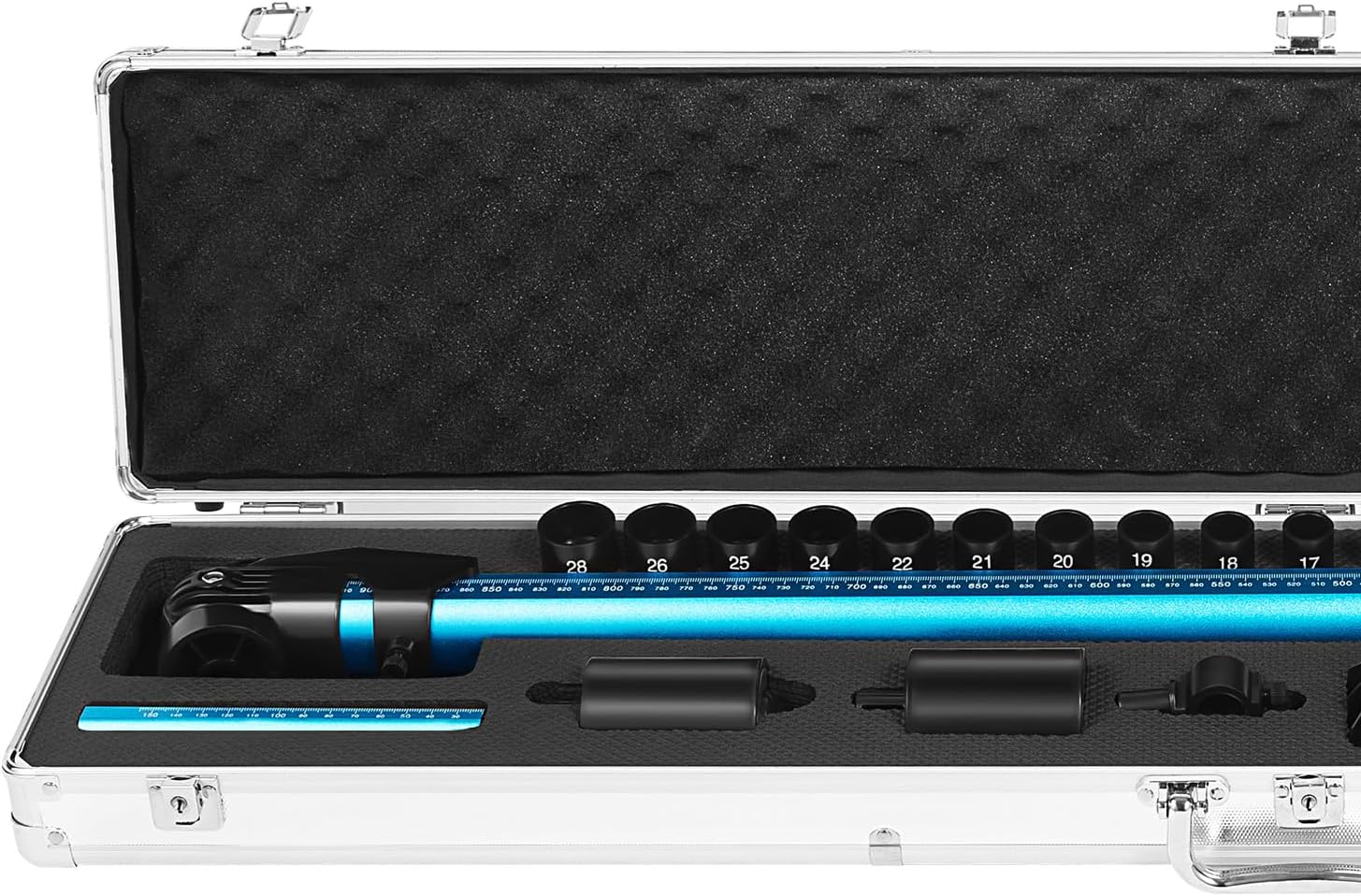

• Portable Design: The carrying case with grooves, buckles, and a handle can store these tools safely and make this universal body frame measuring machine easy to carry to the workplace.
• Easy To Use: With the professional measure equipment repair tool’s high strength, small size, light weight, and equipped CD that includes the usage video, one person can master the usage as soon as possible and complete measurements independently.
